Right Angle Mini-DIN
Unit of Measure

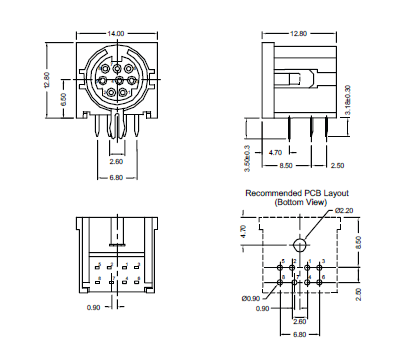

Specifications

Manufacturer Stock

 N/A {0}

Brands

 N/A Kycon

Manufacturer

 N/A Kycon, Inc.

Series

 N/A KMDGX

Configuration

 N/A 5 Contacts over 5 Contacts

Number of Contacts

 N/A 5

Contact Type

 N/A Receptacle

Shield Options

 N/A Fully Shielded

Industry Standards

 N/A Canadian Standards Association (CSA®) US LR78160 European Conformity (CE) Recognized Component Mark (RU®) Restriction of Hazardous Substances (RoHS)

Material and Finish

Body Material

 N/A Polybutylene Terephthalate (PBT) Thermoplastic, UL 94V-0 Rated

Body Color

 N/A Black Green Purple Yellow

Contacts

 N/A Phosphor Bronze, Gold Plated

Shield Material

 N/A Standard: Brass, Tin Plated

Plating

 N/A Gold Flash over Nickel on Contacts, Tin over Nickel on Solder tails.

Mechanical Characteristics

Maximum Insertion Force

 N/A 4.5 kg

Extraction Force

 N/A 0.4 to 3.5 kg

Minimum Durability

 N/A 500 cycles

Electrical Characteristics

Contact Current Rating at 12 Volts (V) Direct Current (DC) Voltage

 N/A 2 A

Minimum Insulation Resistance at 500 Volt (V) Direct Current (DC) Voltage

 N/A 500 MΩ

Maximum Contact Resistance Before Durability Test (Plug to Terminals)

 N/A 30 mΩ

Maximum Contact Resistance After Durability Test (Plug to Terminals)

 N/A 60 mΩ

Alternating Current (AC) Dielectric Withstanding Voltage for 1 Minute

 N/A 500 V

Operating Temperature

 N/A -25 to 85 ºC

Features

Features

 N/A
  • PC99 Colors Available
  • Shielded Options Available for Good Conductivity, Grounding and EMI/RFI Protection
  • Mates with Standard and Snap and Lock Plugs
  • Visual and Mechanical Polarization for Plug Insertion
  • Reflow Compatible Design Available
